DocMemory Memory Module Diagnostic Software Information

Wednesday, October 31, 2018

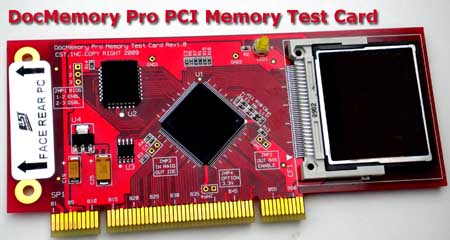

DocMemory Pro Memory Diagnostic Test Card Info

 What is DocMemory PRO PCI Memory Diagnostic?



DocMemory Pro-PCI Test Card is a user friendly PC Memory Diagnostic Software tool targeting at the Memory Module Manufacturers. “DocMemory Pro ” is an advanced self-booting PC Memory Diagnostic Software. This user-friendly software is designed to capture all possible memory failures in a PC. Rigorous test pattern is exercised on both the PC Base and Extended Memory to locate defective memory. During Boot up, DocMemory is able to determine memory capacity with its Auto-Identification feature, displaying easy to read memory related information.

Enhancements in Version 5.0

  • DocMemory Pro V5.0 is available on a PCI Test Card Detects bad address location, rank and pin-point fail Data-Bit accurately.
  • Works with both Intel and AMD latest CPU and Chipsets
  • Up 64 Gb of memory testing only
  • Uses CST Proprietary Bootup program to Bootup from PCI Test Card
  • Supports DDR,DDR2 and the latest DDR3 SODIMM/DIMM Memory
  • Reads SPD Data from EEPROM

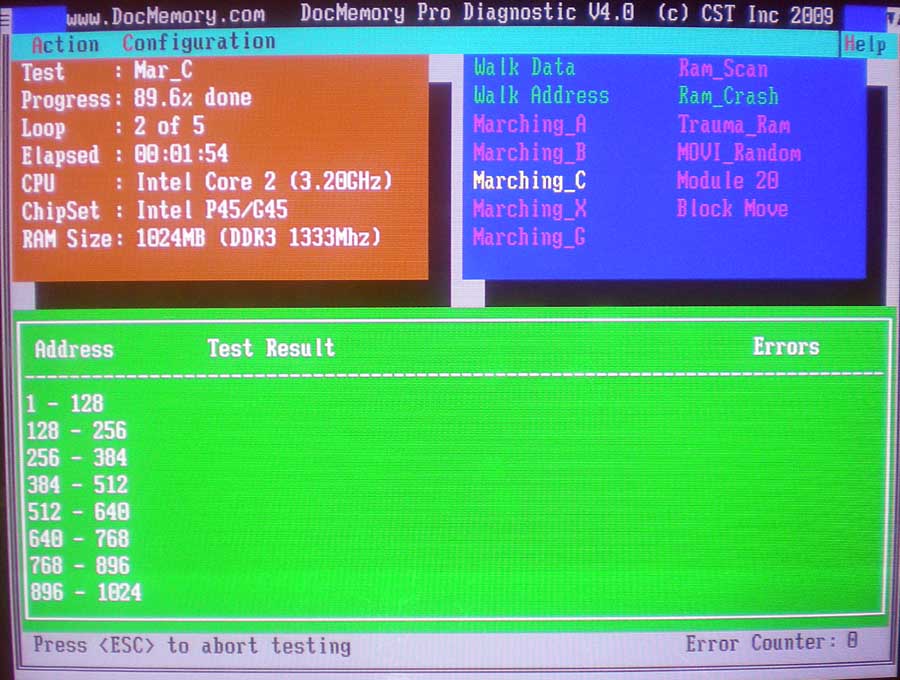

DocMemory PRO PCI Memory V5.0 is a powerful memory diagnostic software capable of detecting faulty memories at the PC system level very quickly with its exhaustive " CST Proprietory Memory Testing Algorithm ". DocMemory V5.0 includes 15 Test Algorithm which can capture hard to detect memory failures : - Walk Address , Walk Data , Mat-S, March A, March B, March C, March X, March Y ,RamScan, Ram-Crash , Trauma-Ram,Mov-I, Module 20 and Block Move. DocMemory Pro PCI is a must for all Memory Module Manufacturers, service technicians; large memory wholesalers and resellers will benefit from using this software.

Note : Software does not change any configuration in your PC. Please read instruction carefully before installation.

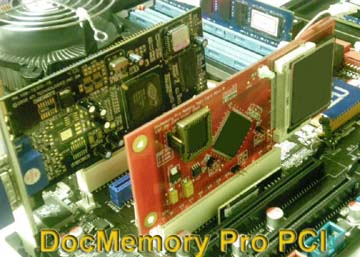

View Video of DocMemory Pro PCI Test Card in action

.

DocMemory Pro PCI Diagnostic Test Card is available for delivery in September 2009, Call CST at (972)-2412662 OR info@simmtester.com for more information.
