SP3000 info

Now Shipping DDR3 1333Mhz Real Time Testing 1333mhz 1066mhz 800mhz PC3-10666 PC3-8500 PC3-6400

Need Help selecting the right memory test options? Use the Tester Configurator OR View the entire SP3000 Test Option list.

CST is Taking DDR,DDR2 & DDR3 Memory Testing to New Horizons

CST is proud to offer a portable stand alone and affordable memory tester, combining DIMM and SODIMM testing capability all on the same universal base unit with optional easy plug-on test adapters.

SP3000 tester is equipped for testing a wide variety of memory modules from DDR3, DDR2, DDR to SDRAM to EDO/DRAM memory. Coverage includes 240pin, 200pin DDR2, 184pin , 200pin DDR, 168pin, 144pin SDRAM, 168pin, 72pin,30 pin EDO/FPM DRAM SIMMs DIMM SoDIMM memory module.

The same SP3000 Tester support DDR2 PC2-8500,PC2-6400,PC2-5300, PC2-4200,PC2-3200, DDR PC4200, PC3200,PC2700, PC2100, PC1600 DIMM, SDRAM PC133, PC100 and PC66 DIMM , SODIMM, SGRAM Modules , BGA, TSOP Chip testing with easy plug-on optional adapters.

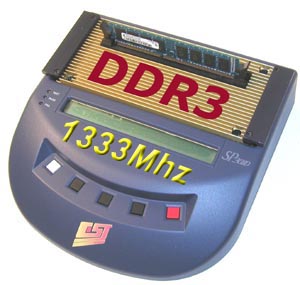

   SP3-DDR3 1333 Mhz -Tester Now Shipping!.

The SP3- DDR3 1333 mhz  Test Adapter for 240pin DDR3 DIMM works with any new SP3000 base tester supporting Unbuffered and Registered PC3-6400, PC3-8500 & PC3-10666 DDR3 DIMM modules.

Adapters for testing DDR2 1066 Mhz DIMM and DDR2 800Mhz SODIMM Test support is currently available too.

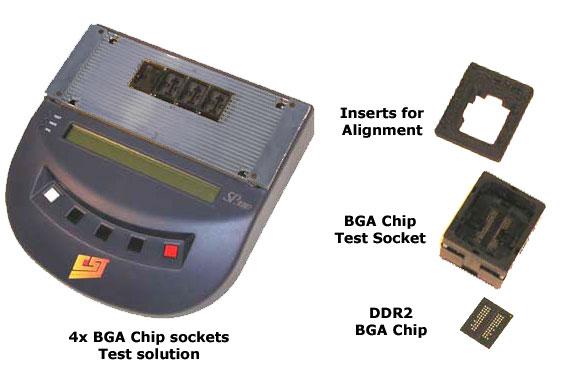

The SP3000 DDR2 800Mhz BGA Chip Tester comes standard with standard 4 BGA chip test socket for testing the 60,84 Ball 256Mbit,512Mbit & 1Gb DDR2 Chip.

Testability

The SP3000 Tester has a universal base platform equipped with an easy to read LCD screen for error display , 5 push buttons for selecting different test functions and powered by a universal 110V/230V Switching Power Supply.

The flexible modular structure of the tester simply makes it easy for you to adapt any test adapters to test a wide variety of memory modules on the SAME BASE unit..... DDR3,DDR2, DDR, SDRAM, SGRAM, DRAM SIMM, EDO DIMM, SODIMM modules, PCMCIA memory cards, and memory chips with affordable optional adapters.

Tester Options

SP3000 Universal base tester adapts with optional test adapters extending test coverage from DDR2 ,DDR, SDRAM ,EDO and more .

Watch a Video of the SP3000 DDR2 in action

Various Test Adapter Available

The SP3000 DDR3 LC DIMM Tester Packages - come with 240pin DDR3 DIMM LC Adapter

The SP3000 DDR3 1333Mhz DIMM Tester Packages - come with 240pin DDR3 DIMM Adapter

The SP3000 DDR3 1333Mhz SODIMM Tester Packages - come with 204pin DDR3 DIMM Adapter

The SP3000 =DDR2 1066= Tester Package comes standard with 240pin DDR2 DIMM Adapter 1066mhz

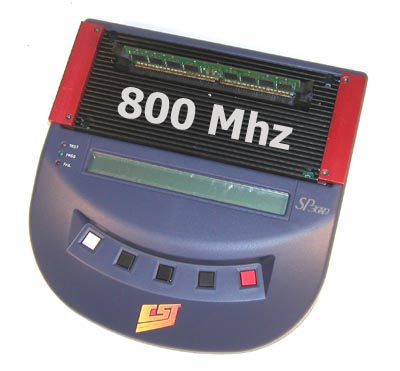

SP3-240p=DDR2 800=Adapter now shipping . Test up to 800mhz REAL TIME !

SP3=DDR2 BGA= Chip Adapter 667mhz, includes BGA chip test socket for testing the 60, 84 Ball 256Mbit,512Mbit & 1Gb DDR2 Chip (* choice of test inserts)

DDR PC-4200, PC-3200, PC-2700, PC-2100 & PC-1600 [DDR 533-200mhz]
-----------------------------------------------------------------------------------------------------

The SP3000 =DDR 400se= Tester Set by far the most popular package comes with both 184pin DDR 400 Adapter and 200pin DDR convertor .

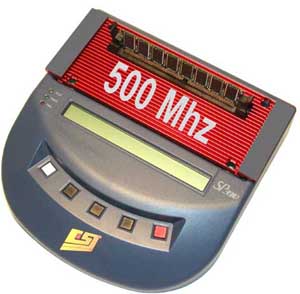

SP3 184p=DDR 500= Adapter with additional 4 Rank Registered test capability is available in DIMM and SODIMM version.

SDRAM PC133 PC100 PC66/ DRAM/EDO
------------------------------------------------------------

The SP3000 SDRAM Tester Set comes standard with 168pin SDRAM DIMM socket for testing the PC133 , PC100 & PC66 SDRAM DIMM modules and an optional 144pin SODIMM socket for testing Laptop SDRAM memory modules.

The SP3000 DRAM Standard Tester Set comes with 72pin & 168pin DRAM SIMM/DIMM socket for testing DRAM EDO FPM modules.

*Optional SODIMM Test Adapters are available for testing Laptop DDR memory modules.

...select the combination of adapters that best meet your needs or contact us .
